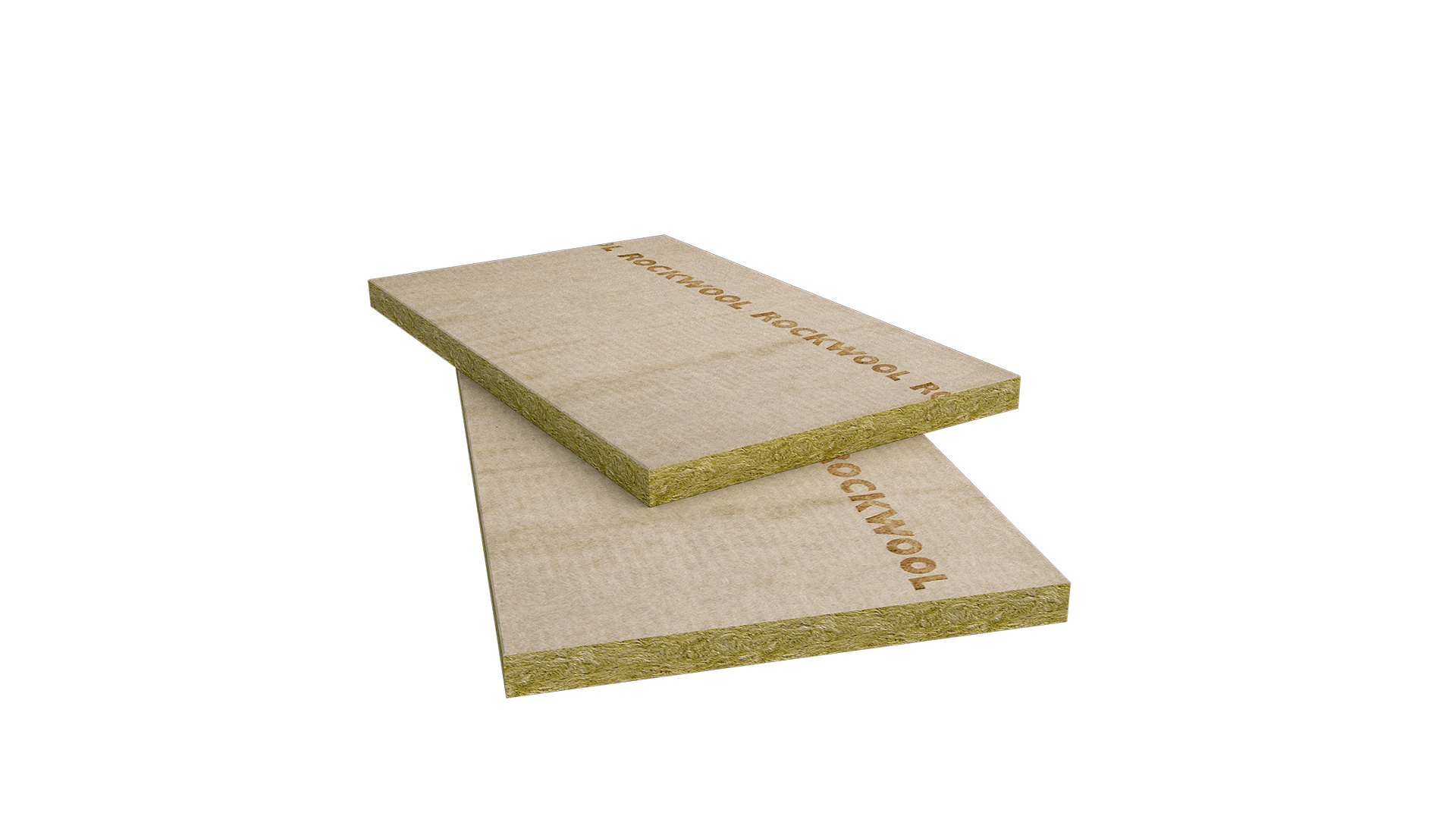

Acoustic RockFloor®
ROCKWOOL Acoustic RockFloor® is a mono-density board designed to absorb impact noise in separating floors. It is a tissue-faced, high compressive insulation slab, designed with Part E (Acoustic) regulations in mind.
Specification
| NBS Clause | Length (mm) | Width (mm) | *Approved thickness range (mm) |
K11-215, K11-225 K11-235, K11-245 K21-111, K21-115 K21-145, K21-146 M10-290, M13-260 | 1000 | 600 | 25-50 |
*Thickness options may be subject to a minimum production volume. Speak to the specification team for guidance.
Standards and Certification
| Product standards | BS EN 13162 |
| CE Marking | CE Marked |
Technical Properties
| Reaction to fire (Euroclass) | Euroclass A1 |
| Thermal conductivity | 0.040 W/mK |
| Acoustic performance | Achieves Part E (resistance to sound) when installed in accordance to ROCKWOOL guidelines |
| Water repellent | Yes |
| Example Specification | Performance |

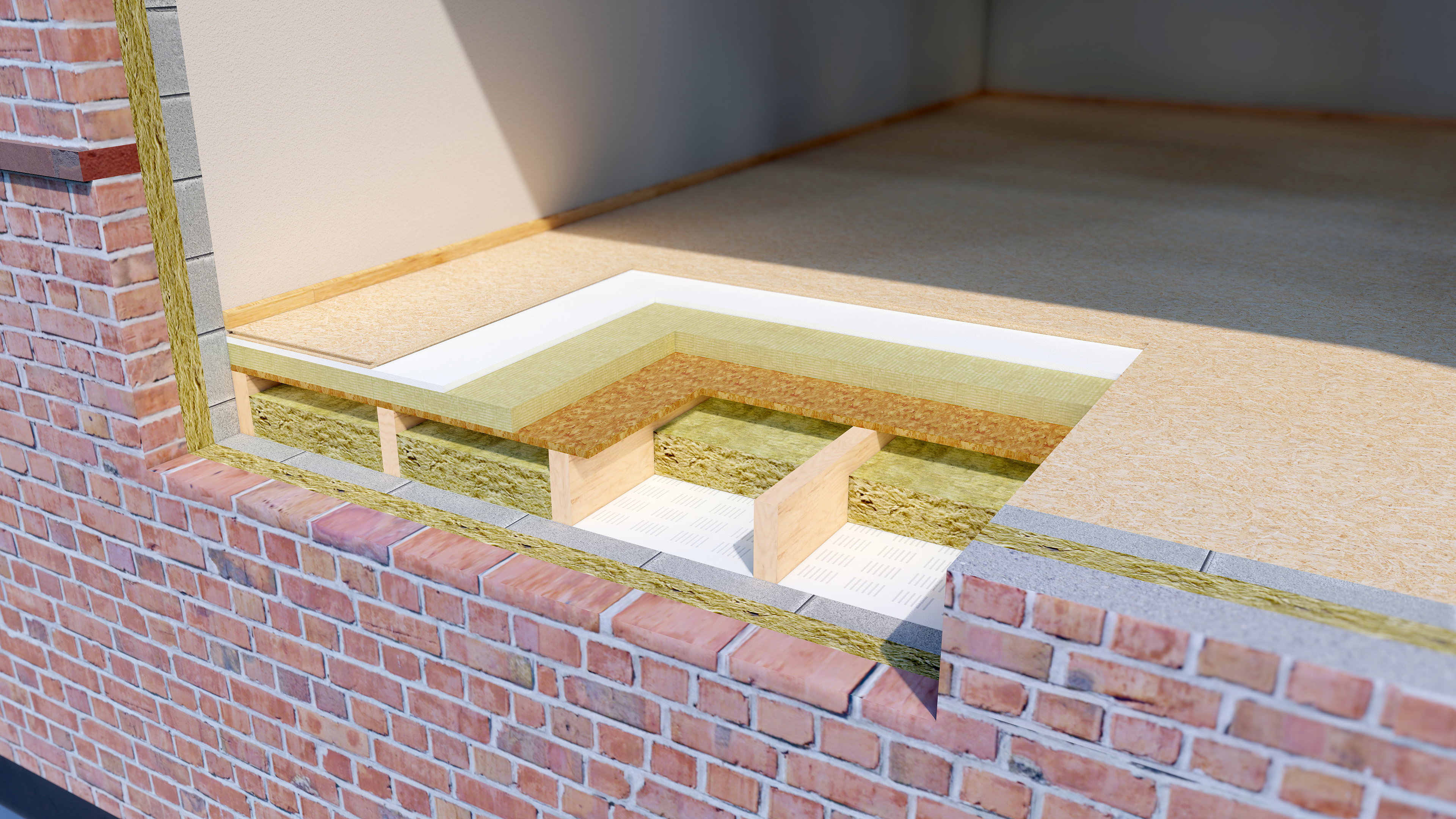

30mm Acoustic RockFloor® 100mm ROCKWOOL Flexi® 15mm Plasterboard (13kg/m²) 30mm Acoustic RockFloor® 15mm OSB 100mm ROCKWOOL Flexi® Resilient bars at 400mm centres Two layers of 15mm Plasterboard | Airborne Sound Reduction RW (C;Ctr) = 66 (-5; 12) dB
Impact Sound Reduction Ln,w = 58 dB |
Acoustic Performance
The non-directional fibre orientation and density of stone wool means that sound waves are trapped, and vibrations dampened which can significantly reduce noise. ROCKWOOL insulation retains its shape and thickness for the lifetime of the building, which means it performs acoustically decade after decade.
The density and fibre orientation of RockFloor means it is especially effective at absorbing vibration, or impact, based sound.
More information on acoustics, regulations and ROCKWOOL solutions is featured in the ROCKWOOL SoundPro guide.
CAD Drawings
Download CAD Drawings here
