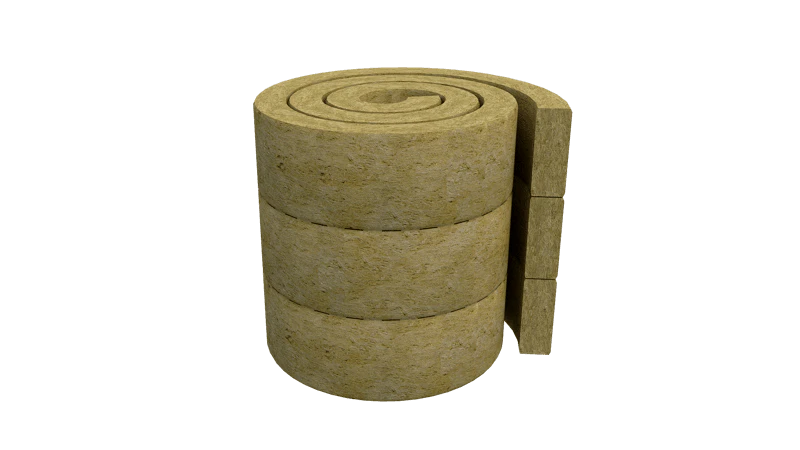

Rollbatt
ROCKWOOL Rollbatt is stone wool insulationfor thermal and acoustic solutions for roof and loft spaces. ROCKWOOL Rollbatt is Euroclass A1 non-combustible as defined in EN13501-1.
The insulation is manufactured to pre-cut widths of 400mm (x3) or 600mm (x2), in thicknesses of 100mm and 150mm. Rollbatt is supplied on pallets and protected by waterproof covering.
Specification
| NBS Clause | Length (mm) | Width (mm) | *Approved thickness range |
| P10-125, P10 135, P10-140, P10-170, P10-190, P10-217, P10-220, P10-240, P10-250 | 100mm - 4850 150mm - 3200 | 400, 600 | 100 - 150 |
*Thickness options may be subject to a minimum production volume. Speak to the specification team for guidance.
Standards and Certification
| Product standards | BS EN 13162, Keymark, Kitemark |
| CE Marking | CE Marked |
Technical Properties
| Reaction to fire (Euroclass) | Euroclass A1 |
| Thermal conductivity | 0.044 W/mK |
| U-Value (W/m2K) | ROCKWOOL Roll between joists (mm) | ROCKWOOL Roll over joists (mm) | Total insulation thickness (mm) |
| 0.17 | 100 | 150 | 250 |
| 0.14 | 100 | 200 | 300 |
| 0.12 | 100 | 250 | 350 |
| 0.11 | 100 | 300 | 400 |
| 0.9 | 100 | 400 | 500 |
CAD Drawings
Download CAD Drawings here
